Product Descritpion
Introduction:

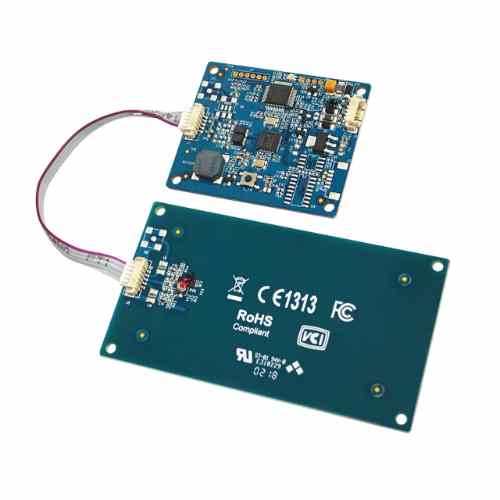

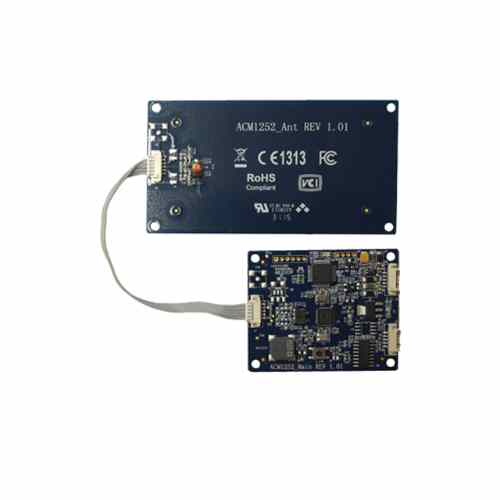

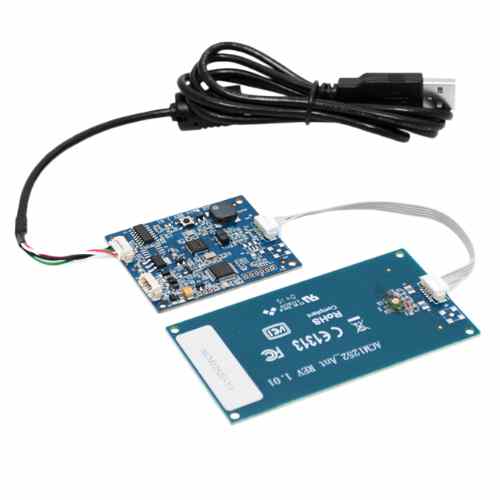

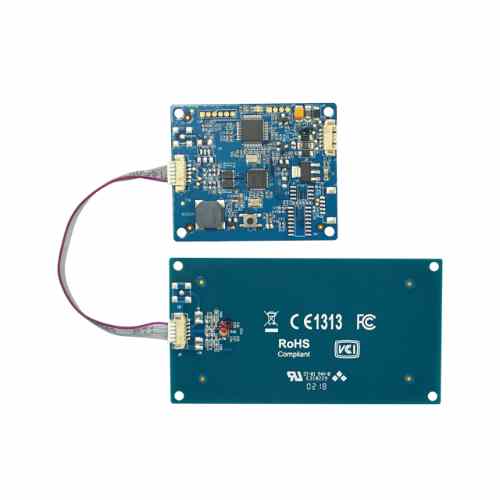

The ACM1252U-Y3 is a versatile USB NFC reader module designed for rapid integration into embedded systems, leveraging advanced 13.56 MHz contactless technology. Building on the success of its predecessor (the NFC Forum-certified ACR1252U-A1), this module supports all three NFC modes—card reader/writer, card emulation, and peer-to-peer communication—making it ideal for secure transactions in vending machines, kiosks, gaming systems, and industrial applications.
Characteristic
| Physical Characteristics | |
| Dimensions (mm) | Main Board: 55.0 mm (L) x 45.0 mm (W) x 5.1 mm (H) Antenna Board: 91.0 mm (L) x 49.5 mm (W) x 5.1 mm (H) |
| Weight (g) | 26.6 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | Standard Type A |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 1.0 m, Detachable (Upon Request) |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL ISO18092, NFC Tags FeliCa |
| Antenna | 77 mm x 49.5 mm |
| SAM Card Interface | |
| Number of Slots | 1 (Optional) |
| Built-in Peripherals | |
| LED | 1 bi-color: Red and Green |
| Buzzer | Monotone |
| Other Features | |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | EN 60950/IEC 60950 ISO 7816 (SAM Slot) ISO 14443 ISO 18092 USB Full Speed PC/SC CCID VCCI (Japan) CE FCC RoHS REACH Microsoft® WHQL |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® Linux® MAC OS® Solaris Android™ |
Feature
- USB 2.0 Full Speed Interface
- CCID Compliance
- USB Firmware Upgradeability
- Smart Card Reader:
- Contactless Interface:
- Read/write speed up to 424 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
- Supports ISO 14443 Type A and B, MIFARE®, and FeliCa cards, and all 4 types of NFC (ISO/IEC 18092) tags
- Supports MIFARE® 7-byte UID, MIFARE® Plus and MIFARE® DESfire
- Built-in anti-collision feature (only 1 tag is accessed at any time)
- NFC Support:
- NFC Reader/Writer Mode
- Peer-to-Peer Mode
- Card Emulation Mode
- SAM Interface (upon request)
- One SAM Slot (upon request)
- Support for ISO 7816 MCU Card (Class A)
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- Built-in Peripherals:
- User-controllable bi-color LED
- User-controllable buzzer
- Supports AndroidTM1 and above
- Compliant with the following standards:
- EN60950/IEC 60950
- ISO 18092 (NFCIP-1)
- ISO 14443 Parts 1-4
- CE
- FCC
- VCCI
- PC/SC
- CCID
- Microsoft® WHQL
- RoHS 2
- REACH
Application
- Payment Systems: Vending machines, self-service terminals, e-ticketing devices .
- Smart Devices: Digital signage, gaming machines, medical equipment, access control .
- IoT Integration: Logistics tracking, industrial data collection, smart city infrastructure
Engineered for reliability and compatibility, this Smart Card Reader Module ensures seamless connectivity for IoT devices, payment systems, and access control solutions. Choose ACM1252U-Y3 to future-proof your contactless technology infrastructure with minimal development effort.
