Product Descritpion
Introduction

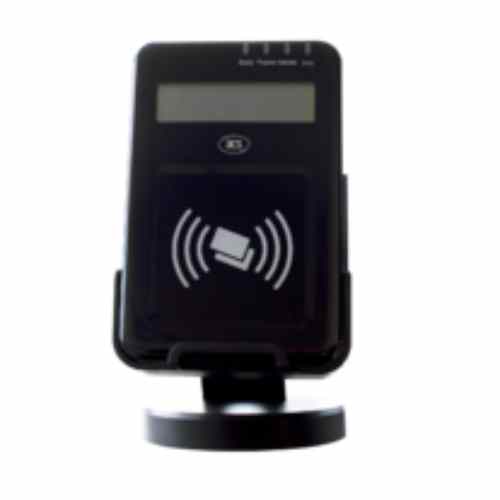

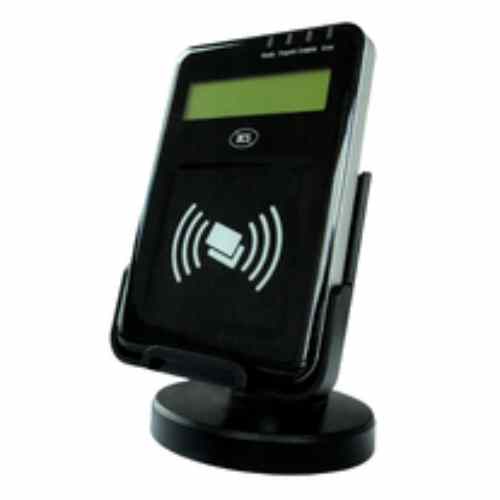

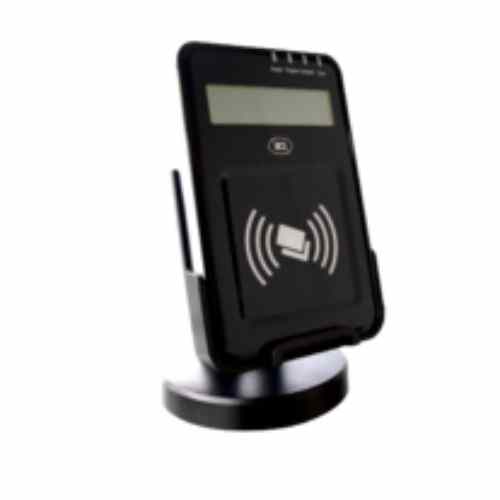

ACR1222L is a PC-linked NFC contactless reader equipped with an LCD, using USB as its host interface. It’s developed based on 13.56 MHz RFID technology and the ISO/IEC 18092 standard, supporting ISO14443 Type A and B cards, MIFARE, FeliCa, and all four types of NFC tags. With PC/SC compliance, it ensures easy upgrades for PC/SC smart card applications, enhancing user interaction. The device features 4 LEDs, a buzzer, and a multi-language supported 2-line graphic LCD that offers clear indications and interactive operations like scrolling. Its three built-in SAM slots provide enhanced security during contactless operations. Typical applications include e-payment, loyalty programs, and access control.
Characteristic
| Physical Characteristics | |
| Dimensions (mm) | Main Body: 133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H) With Stand: 158.0 mm (L) x 95.0 mm (W) x 95.0 mm (H) |
| Weight (g) | Main Body: 173 g With Stand: 415 g |
| USB Interface | |
| Connector Type | Standard Type A |
| Protocol | USB CCID |
| Speed | USB Full Speed (12 Mbps) |
| Power Source | From USB Port |
| Cable Length | 1.5 m, Fixed |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL ISO18092, NFC Tags FeliCa |
| SAM Card Interface | |
| Number of Slots | 3 Standard SIM-sized Card Slots |
| Standard | ISO 7816 Class A (5 V) |
| Protocol | T=0; T=1 |
| Built-in Peripherals | |
| LCD | Graphical LCD with Yellow-Green Backlight Resolution : 128 x 32 pixels Number of Characters: 16 characters x 2 lines |
| LED | 4 single-color: Green, Blue, Orange and Red |
| Buzzer | Monotone |
| Other Features | |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | ISO 18092 ISO 14443 ISO 7816 (SAM Slot) USB Full Speed PC/SC CCID VCCI (Japan) KC (Korea) Microsoft® WHQL CE FCC RoHS REACH |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® Linux® MAC OS® Solaris Android™ |
Feature
- USB 2.0 Full Speed Interface
- CCID Compliance
- Smart Card Reader:
- Read/Write speed of up to 424 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
- Supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
- Built-in anti-collision feature (only one tag is accessed at any time)
- Three ISO 7816-compliant SAM slots
- Built-in Peripherals:
- Two-line graphic LCD with interactive operability (i.e. scroll up and down, left and right, etc.) and multi-language support (i.e. Chinese, English, Japanese and several European languages)
- Four user-controllable LEDs
- User-controllable buzzer
- USB Firmware Upgradability
Application
- E-Government
- Banking & Payment
- E-Healthcare
- Network Security
- Access Control
- E-Purse & Loyalty
- Transportation
Looking to enhance your contactless transaction capabilities? The ACR1222L Reader, with its LCD display and support for multiple card types, is the secure and versatile solution you need—ideal for e-payment, loyalty programs, and access control.
