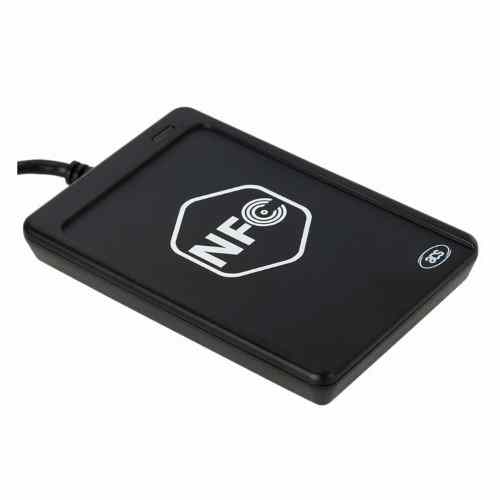

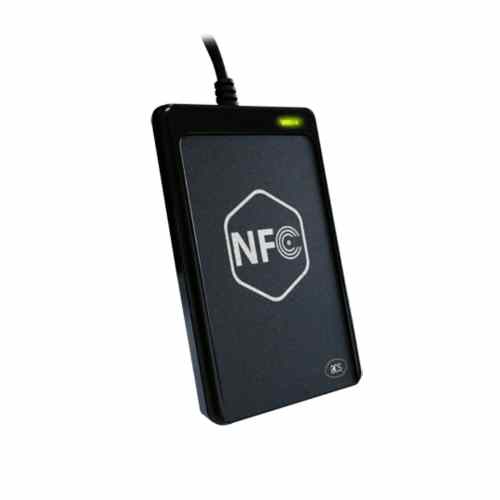

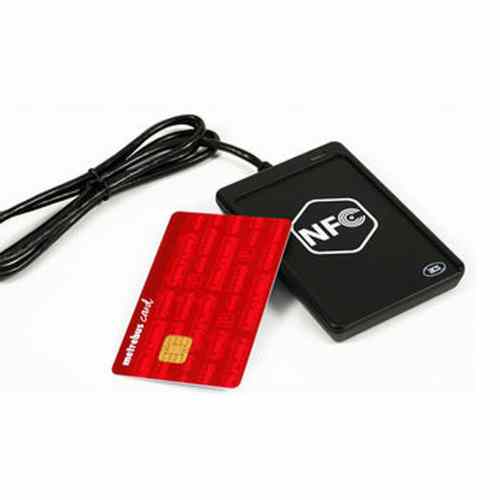

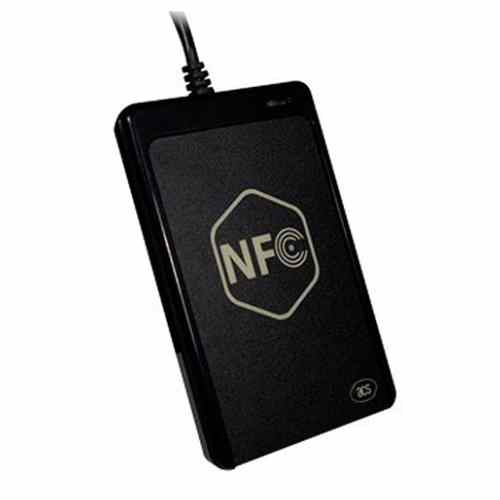

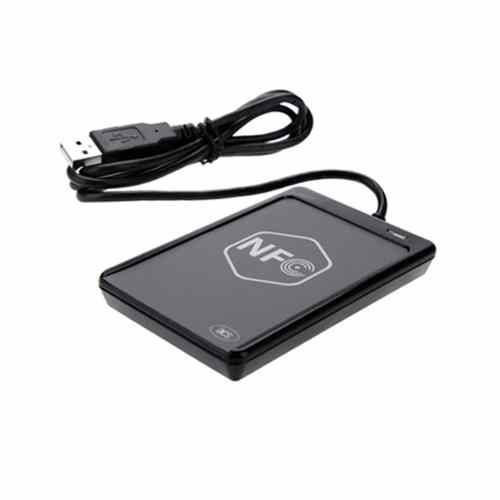

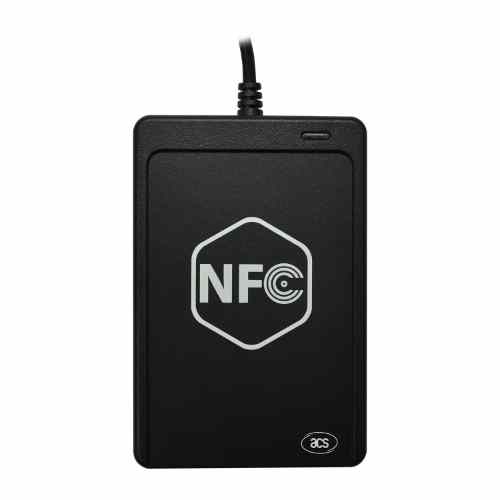

The ACR1251U is a PC-linked NFC smart card reader based on 13.56 MHz contactless technology, supporting ISO 14443 Type A/B, MIFARE, FeliCa, and all NFC tags/devices with an ISO 7816-compliant SAM slot for enhanced security via key diversification and mutual authentication . It suits applications like identity verification, network login, and online banking and supports remote firmware upgrades for flexibility. Fully compliant with PC/SC and CCID standards, it seamlessly integrates across Windows, Linux, macOS, and Android platforms, offering a compact, powerful solution for access control, payment systems, and smart posters.

Characteristic

Physical Characteristics

Dimensions:   98.0 mm (L) × 65.0 mm (W) × 12.8 mm (H)

Weight:  81g

Color:  Matte Black

USB Host Interface

Protocol:  USB CCID

Connector Type:  Standard Type A

Power Source:  From USB port

Speed:  USB Full Speed (12 Mbps)

Supply Voltage:  5V

Supply Current:  Max.200 mA

Cable Length:  1 m, Fixed

Contactless Smart Card Interface

Standard:  ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa

Protocol:  ISO 14443 T=CL for ISO 14443-4-compliant cards

T=CL Emulation for MIFARE Classic, ISO 18092,FeliCa and NFC tags

Operating Frequency:  13.56 MHz

Operating Distance:  Up to 50 mm (depending on tag type)

Smart Card Read/Write Speed:  106 Kbps,212 Kbps,424 Kbps

Antenna Size:  50mm×40mm

SAMCardInterface

Number of Slots:  1 Standard SIM-sized Card Slot

Standard:  ISO 7816, Class A, B, and C (5 V, 3 V, 1.8 V)

Protocol:  T=0; T=1

Smart Card Read/Write Speed:  9.6 Kbps-420 Kbps

Card Connector Type:   SAM Slot O:Contact

Built-in Peripherals

LED: 1 bi-color: Red and Green

Buzzer:  Monotone

Other Feature

FirmwareUpgrade:  Supported

Application Programming Interface

PC-linked Mode:  PC/SC

CT-API (Through wrapper on top of PC/SC)

Operating Conditions

Temperature:  O℃-50℃

Humidity:  Max.90% (Non-condensing)

MTBF:  500,000 hrs

Certifications/Compliance:

EN 60960/IEC 60950, ISO 7816 (SAM SIot), ISO 14443, ISO 18092, USB Full Speed,

FeliCa Performance Certification, PC/SC,CCID, CE,FCC,RoHS 2,REACH

J-LIS (Japan),VCCI (Japan), MIC (Japan), KC (Korea),Microsoft® WHQL

Device Driver Operating System Support

Windows®CE 5.0,Windows®CE 6.0, Windows® Embedded Compact 7, Windows® 2000,WindowsXP,Windows Vista®,Windows® 7,Windows® 8,Windows® 8.1,Windows® 10

Windows® Server 2003,Windows® Server 2003 R2,Windows Server 2008,Windows Server 2008 R2,Windows® Server 2012,Windows® Server 2012 R2Linux®,Mac OS®,Android^TM 3.1 and later

Feature

• USB Full Speed Interface
• CCID-Compliant
• Smart Card Reader:
• Contactless Interface:
• Read/Write speed of up to 424 Kbps
• Built-in antenna for contactless tag access, with card reading distance of up to 50 mm(Depending on tag type)
• Supports ISO 14443 Part 4 Type A and B cards,MIFARE Classic,FeliCa, and all
• four types of NFC (ISO/IEC 18092 tags)
• Built-in anti-collision feature (Only one tag is accessed at any time)
• NFC Support:

Card ReaderWriter mode

Peer-to-Peer mode

• SAM Interface:
• One SAMSlot
• Supports ISO 7816 Class A, B, and C SAM cards
• Built-in Peripherals:
• User-controllable bi-color LED
• User-controllable buzzer
• Application Programming Interface:
• Supports PC/SC
• Supports CT-API (Through wrapper on top of PC/SC)
• USB Firmware Upgradeability
• Supports Android^TM1 and later’
• Compliant with the following standards:
• EN 60950/IEC 60950
• ISO 7816(SAM SIot)
• ISO 14443
• ISO 18092
• FeliCa Performance Certification
• PC/SC
• CCID
• CE
• FCC
• RoHS 2
• REACH
• J-LIS (Japan)
• VCCI (Japan)
• MIC (Japan)
• KC (Korea)
• Microsoft® WHQL

Application

• E-Government
• E-Banking and e-Payment
• E-Healthcare
• Transportation
• Network Security
• Access Control
• Loyalty Program
• Smart Poster/URL Marketing

The ACR1251U NFC reader supports ISO 14443 A/B, MIFARE, FeliCa and all types of NFC devices. Contact us to know more details.
