Introduction

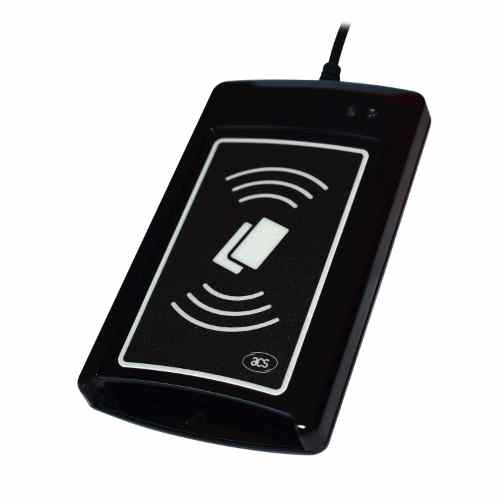

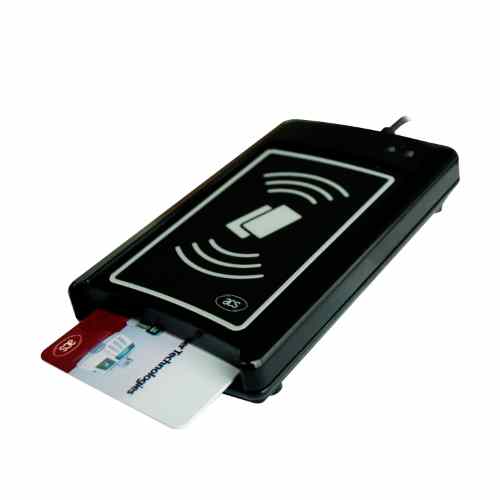

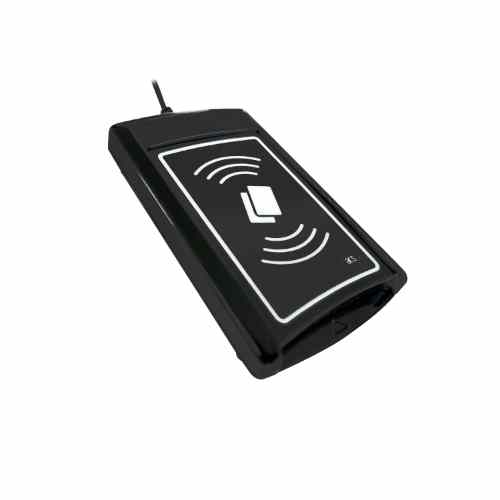

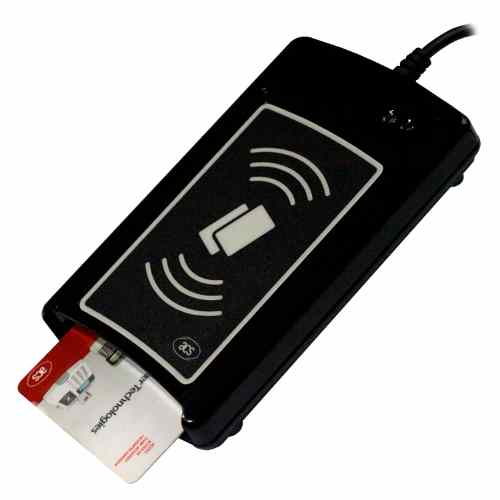

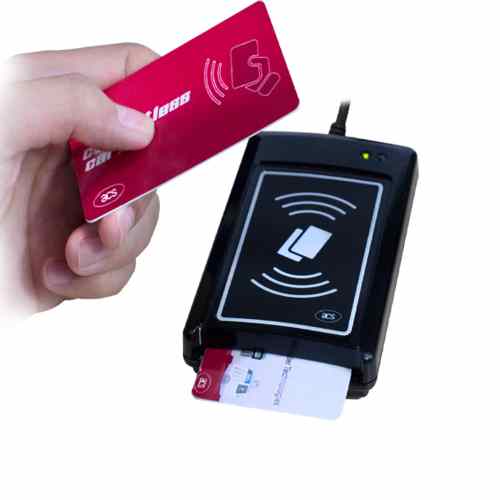

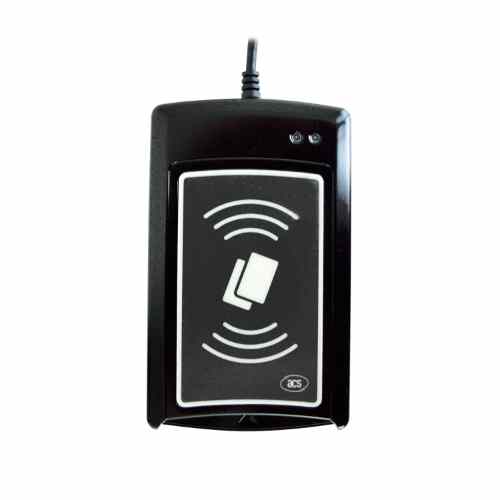

The ACR1281S-C1 Dual Boost II is a dual-interface reader that accesses contact and contactless smart cards complying with ISO 7816 and ISO 14443 standards. It integrates separate applications for both technologies into one device and card. Using the RS-232 serial protocol for host communication, it offers high-speed contactless communication at up to 848 Kbps, making it suitable for demanding applications. The reader intelligently supports hybrid and combi cards, detecting contactless cards even when inserted in the contact slot. Additionally, it features a built-in ISO 7816-compliant Class A SAM (Secure Access Module) slot, which, when used with a SAM card, enhances security for both contact and contactless applications.

Characteristic

Physical Characteristics

Dimensions ……………………………… 120.5 mm (L) × 72.0 mm (W) × 20.4 mm (H)

Weight…………………………………….. 150 g

Color ………………………………………. Black

Serial Host Interface

Protocol…………………………………… Serial RS-232

Connector Type………………………… DB9 Connector

Power Source…………………………… From USB port

Speed……………………………………… 9.6 Kbps (default), 19.2 Kbps, 38.4 Kbps, 57.6 Kbps, 115.2 Kbps, 230.4 Kbps

Supply Voltage…………………………. 5 V

Supply Current ………………………… Max. 200 mA

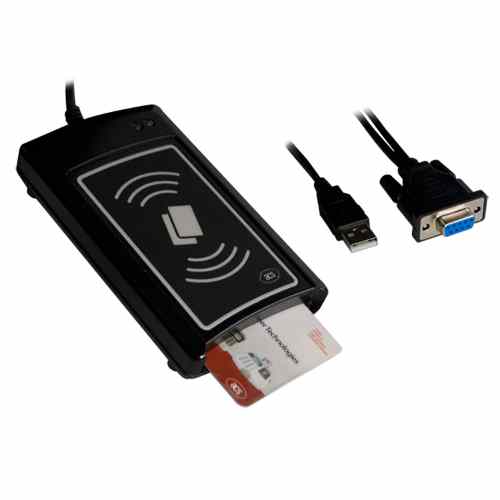

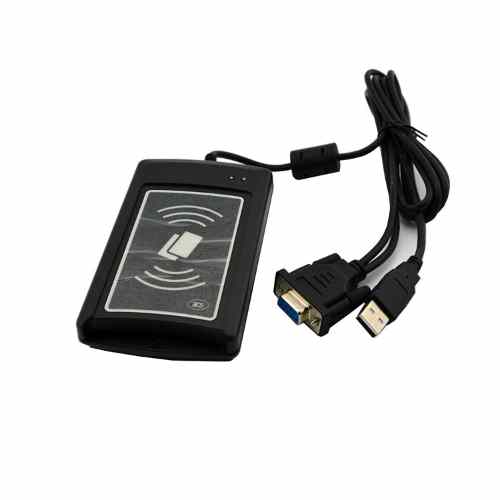

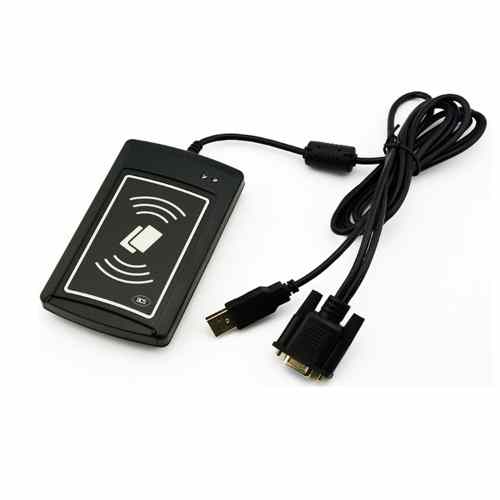

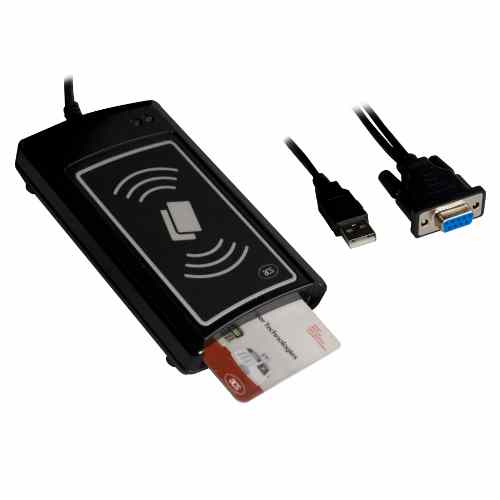

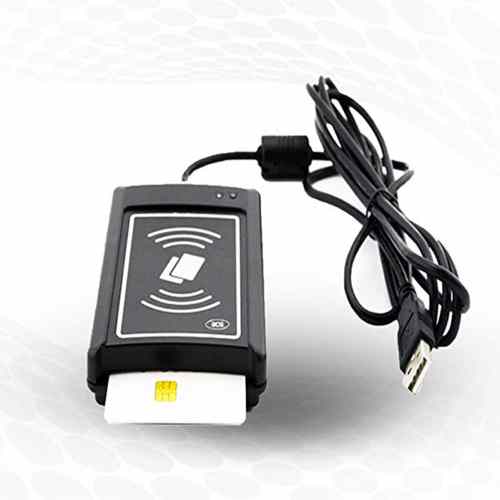

Cable Length……………………………. 1.5 m, Fixed (DB9 + USB)

Contactless Smart Card Interface

Standard …………………………………. ISO 14443 A and B Parts 1-4

Protocol…………………………………… ISO 14443 T=CL for ISO 14443-4–compliant cards

………………………………………………. T=CL Emulation for MIFARE Classic

Operating Frequency ………………… 13.56 MHz

Operating Distance …………………… Up to 50 mm (depends on tag type)

Smart Card Read/Write Speed……. 106 Kbps, 212 Kbps, 424 Kbps, 848 Kbps

Antenna Size……………………………. 65 mm × 60 mm

Contact Smart Card Interface

Number of Slots ……………………….. 1 Full-sized Card Slot

Standard …………………………………. ISO 7816, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol…………………………………… T=0; T=1

Supply Current …………………………. Max. 60 mA

Smart Card Read/Write Speed……. 9.6 Kbps – 344 Kbps

Short Circuit Protection …………….. (+5) V/GND on all pins

Clock Frequency ………………………. 4.80 MHz

Card Connector………………………… ICC Slot: Landing

Card Insertion Cycles………………… Min. 200,000

SAM Card Interface

Number of Slots ……………………….. 1 Standard SIM-sized Card Slot

Standard …………………………………. ISO 7816 Class A (5 V)

Protocol…………………………………… T=0; T=1

Smart Card Read/Write Speed……. 9.6 Kbps – 420 Kbps

Card Connector Type………………… SAM Slot 0: Contact

Built-in Peripherals

LED………………………………………… 2 single-color: Red and Green

Buzzer…………………………………….. Monotone

Other Feature

Firmware Upgrade ……………………. Supported

Operating Conditions

Temperature ……………………………. 0 °C – 60 °C

Humidity ………………………………….. Max. 90% (non-condensing)

MTBF ……………………………………… 500,000 hrs

Certifications/Compliance

ISO 14443, ISO 7816, CE, FCC, RoHS 2

Device Driver Operating System Support

Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016

Linux®

Feature

• Serial RS-232 Interface: Baud Rate = 9.6 Kbps (default), 19.2 Kbps, 38.4 Kbps,

57.6 Kbps, 115.2 Kbps, 230.4 Kbps

• USB interface for power supply
• CCID-like frame format (binary format)
• Smart Card Reader:

o Contactless Interface:

• Read/Write speed of up to 848 Kbps
• Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
• Supports ISO 14443 Part 4 Type A and B cards and MIFARE® series
• Built-in anti-collision feature (only one tag is accessed at any time)
• Supports extended APDU (max. 64 KB)

o Contact Card Interface:

• Supports ISO 7816 Class A, B and C (5 V, 3 V and 1.8 V) cards
• Supports microprocessor cards with T=0 or T=1 protocol
• Supports memory cards

o SAM Interface:

• One SAM slot
• Supports ISO 7816 Class A SAM cards
• Built-in Peripherals:

o Two user-controllable LEDs

o User-controllable buzzer

• USB Firmware Upgradability
• Compliant with the following standards:

o ISO 14443

o ISO 7816

o CE

o FCC

o RoHS 2

Application

• E-Government
• E-Banking and e-Payment
• E-Healthcare
• Transportation
• Network Security
• Access Control
• Loyalty Program

ACS ACR1281S-C1 card reader is widely applicable for electronic payment, access control, healthcare & government scenarios.
