Product Descritpion
Information

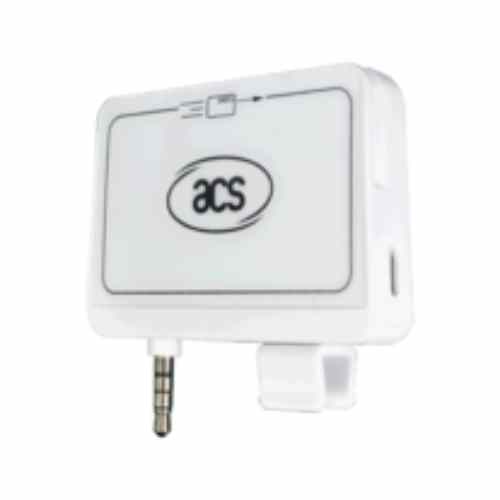

ACR32 Mobile Mate Card Reader is the ideal tool you can use with your mobile device.With the combination of two card technologies in one, it provides its user the flexibility to use magnetic stripe cards and smart cards without additional cost. ACR32 Mobile Mate seamlessly unites card reader functionality with mobility which allows you to access secure applications anytime, anywhere.
Characteristic
| Dimensions | 60.0mm (L) x 45.0mm (W) x 16.0mm (H) |
| Interface | 3.5mm 4-pole audio jack USB Full Speed |
| Power | Lithium-ion battery (rechargeable through USB) |
| Supply Voltage | 3.2 to 3.7 V DC |
| Supply Current | 5 mA |
| Operating Temperature | 0-50°C |
| Card Swipe Speed | Max. 10 IPS (inches per second) |
| Card Swipe Cycles | Min. 500,000 |
| Contact Card Insertion Cycles | Min. 100,000 |
| Magnetic Stripe Card Support | ISO7810 / ISO7811 cards
Hi-coercivity and Low-coercivity cards JIS1 and JIS2 cards |
| Smart Card Interface Support | ISO7816 Class A, B and C cards
Microprocessor cards with T=0 and T=1 protocol Memory cards |
| Compliance / Certifications | EN60950/IEC 60950, ISO7816, CE, FCC, VCCI, PC/SC, CCID, EMV Contact Level 1, RoHS 2, REACH, USB Full Speed
Microsoft WHQL: 2000, XP, Vista, 7, 8, 8.1, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2 |
| Operating System Support | Windows CE, 98, ME, 2000, 2003, 2003 R2, XP, Vista, 2008, 7, 8, 8.1
Windows XP x64, 2003 x64, 2003 R2 x64, Vista x64, 2008 x64, 2008 R2 x64, 7 x64, 8 x64, 8.1 x64, 2012 x64, 2012 R2 x64 Mac Linux Android™ 2.0 and above iOS 5.0 and above |
Feature
3.5 mm Audio Jack Interface
USB Full Speed Interface
Power Source:
o Powered by a Lithium-ion battery (rechargeable through Micro-USB Port)
o USB Powered (PC-linked mode)
Plug and Play – CCID support brings utmost mobility
Smart Card Reader:
o Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
o Supports microprocessor cards with T=0 and T=1 protocol
o Supports memory cards
o Supports PPS (Protocol and Parameters Selection)
o Features Short Circuit Protection
Magnetic Stripe Card Reader:
o Reads up to two tracks of card data
o Capable of bi-directional reading
o Supports AES-128 encryption algorithm
o Supports DUKPT Key Management System
o Supports ISO 7810/7811 magnetic cards
o Supports Hi-coercivity and Low-coercivity magnetic cards
o Supports JIS1 and JIS2
Application Programming Interface:
o Supports PC/SC
o Supports CT-API (through wrapper on top of PC/SC)
Supports Android™ 2.0 and later1
Supports iOS 5.0 and later2
Compliant with the following standards:
o EN 60950/IEC 60950
o ISO 7816
o ISO 7811
o EMV™ Level 1 (Contact)
o PC/SC
o CCID
o CE
o FCC
o RoHS 2
o REACH
o VCCI (Japan)
o KC (Korea)
o Microsoft® WHQL
Application
- E-Healthcare Solutions: Secure patient ID verification, medical payment processing, and electronic record management for enhanced healthcare efficiency.
- E-Wallet & Loyalty Systems: Support Hi-Co/Low-Co mag-stripe cards for membership programs, coupons, and prepaid applications to boost user engagement.
- Mobile Banking & Cross-Border Payments: AES-128 encryption ensures secure transactions on iOS/Android devices, enabling global fund transfers and remote account management
Purchase ACR32 Mobile Card Reader Now! Dual-mode support (magnetic stripe & contact smart cards), plug-and-play with iOS/Android, bank-level encryption, and compact design—perfect for mobile payments, membership systems, and healthcare applications.
