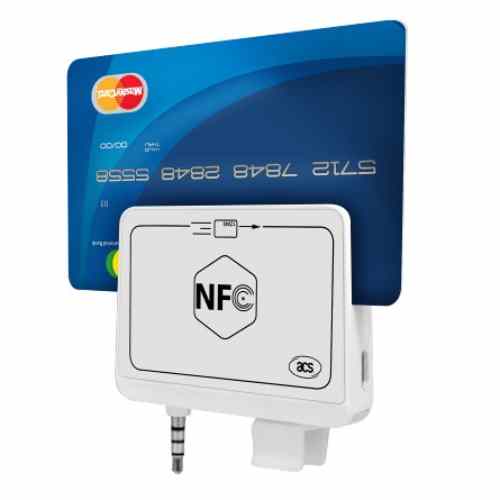

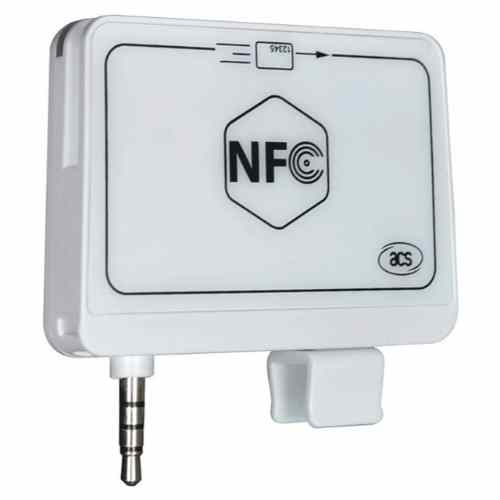

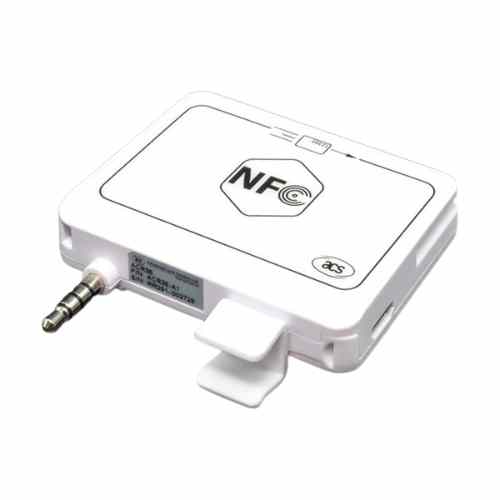

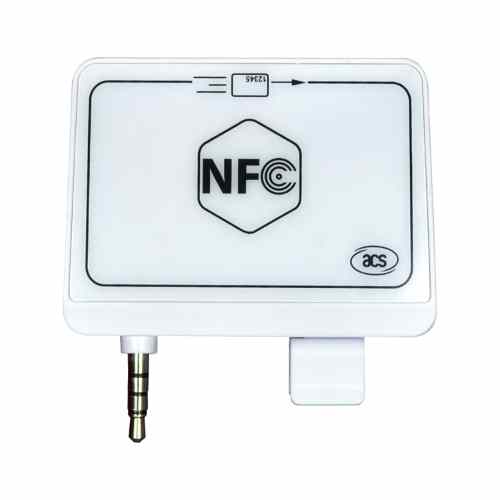

The ACR35 NFC Reader seamlessly captures magnetic card data via its integrated decoder and supports diverse contactless technologies including ISO14443 Parts 1-4, ISO 18092, Mifare variants, FeliCa, and NFC Tag Types 1-4. It securely transmits encrypted card information to smartphones or tablets through a standard 3.5mm audio interface, ensuring robust security for payment processing, access control, and identification applications. This compact reader delivers reliable performance and universal compatibility for efficient contactless transactions.

Characteristic

Power Supply

Battery Powered:  3.2Vto3.7VDC Lithium-ion Battery (Rechargeable through USB)

Operation Time:   Approx.2hrs (Continuous operation)

Communication Interface

Type:  Bi-directional Audio Jack Interface

Connector:  3.5 mm 4-pole Audio Jack

Speed:  Max.2.6 Kbps

Magnetic Card Interface

Standard:  ISO 7810/7811 Hi-Co and Low-Co Magnetic Cards

JIS 1 and JIS 2

Card Swipe Speed:  Max.10in/s

Card Swipe Cycles:  Min.500,000

Contactless Smart Card Interface

Standard:  ISO/EC18092NFCISO14443TypeA&B,MIFARE,FeliCa

Protocol:  ISO 1443 T=CL for ISO14443-4 compliant cards and T=CLEmulation for

MIFAREClassic 1K/4K,ISO 18092,FeliCa and NFC tags

Operating Frequency:  13.56 MHz

Operating Distance:  Up to 50 mm (Depending on tag type)

Smart Card Read/Write Speed:  106 Kbps,212 Kbps,424 Kbps

Physical Specifications

Dimensions:  60.0mm(L)x45.0 mm(W)x 13.3mm(H)

Color:  White

Weight:  29 g(With battery)

Cable length, cord, connector:  1 m, Fixed (Detachable), USB A

Operating Conditions

Temperature:  O℃-50℃

Humidity:   Max.90% (Non-condensing)

Mean Time Between Failure:  300,000 hrs

Certifications/Compliance:

ISO14443,ISO/IEC18092,CE,FCC,VCCI,RoHS2,REACH

Device Driver Operating System Support:

Android”M2.0 and above, iOS 5.0 and above

Feature

• 5 mm Audio Jack Interface
• Powered by aLithium-ion battery (Rechargeable through USB cable)
• Smart Card Reader:
• Builtin antenna for contactless tag access,with reading distance of up to 50 mm(Depending on tag type)
• Supports ISO 14443 Part4 Type A and B cards
• Supports MIFARE
• Supports FeliCa
• Supports ISO 18092 Tags (NFC Tags)*
• Built-inanti-collision feature(Onlyone tag is accessed atanytime)
• NFC Support:
• Card reader/writer mode
• Magnetic Stripe Card Reader:
• Reads up to two tracks of card data
• Capable of bi-directional reading
• Supports AES-128 encryption algorithm
• Supports DUKPT Key Management System
• Supports ISO 7810/7811 magnetic cards
• Supports Hi-coercivity and Low-coercivity magnetic cards
• Supports JIS1 and JIS2
• Supports Android^TM0 and above**
• Supports iOS 5.0 and above**
• Compliant with the following standards:
• ISO 18092
• ISO 14443
• CE
• FCC
• VCCI
• RoHS 2
• REACH

Application

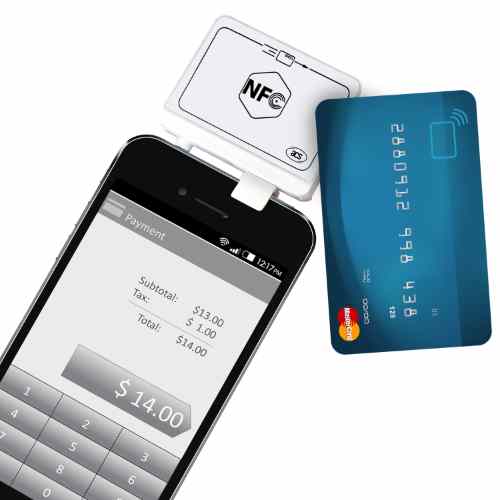

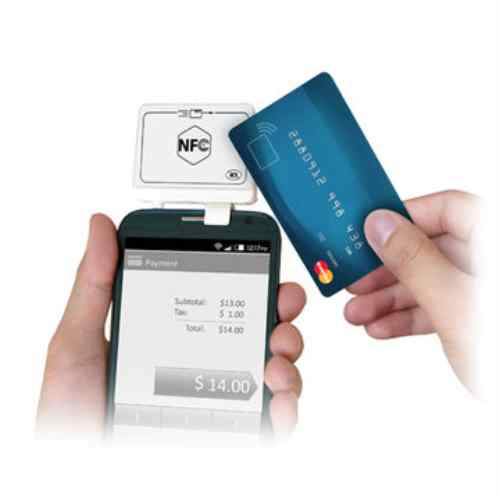

• Mobile Banking: ACR35 enables secure mobile banking transactions by reading magnetic stripe and contactless cards via its 3.5mm audio interface. Supporting ISO 14443/18092 standards and AES-128 encryption, it transforms smartphones into banking terminals for account management and fund transfers, especially on iOS/Android devices without built-in NFC.
