Introduction

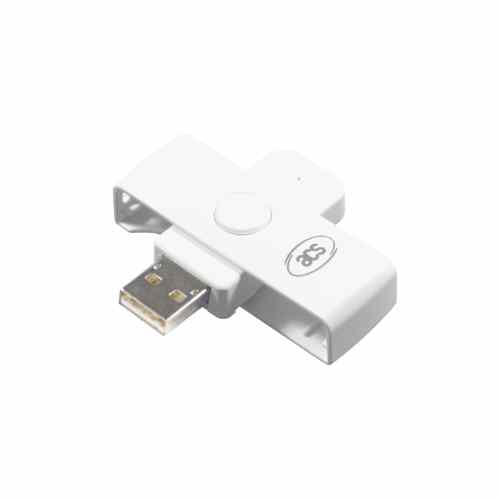

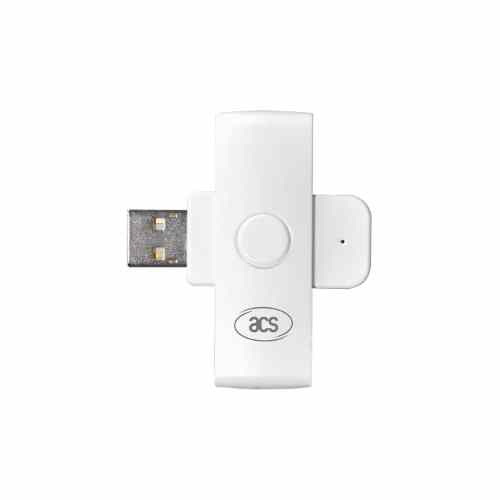

The ACR39U-N1 Pocket Mate II (USB Type A) is a portable smart card reader that has more to it than meets the eye. As small and elegant looking as it is, this smart card reader is capable of supporting demanding smart card applications using full-sized contact smart cards. It provides the perfect balance between reliable functionality and design aesthetics to meet your security needs in many fields, including e-Banking, e-Payment, and e-Government.

Characteristic

Physical Characteristics

Dimensions ……………………………… 58.0 mm (L) × 20.0 mm (W) × 13.7 mm (H)

Weight…………………………………….. 12 g

Color ………………………………………. White

USB Host Interface

Protocol…………………………………… USB CCID

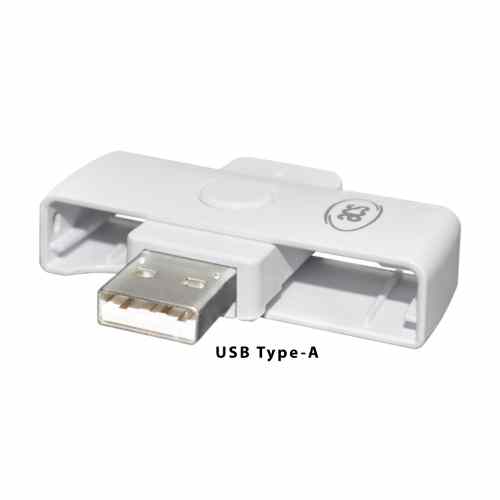

Connector Type………………………… Standard Type A

Power Source…………………………… From USB port

Speed……………………………………… USB Full Speed (12 Mbps)

Supply Voltage…………………………. 5 V

Contact Smart Card Interface

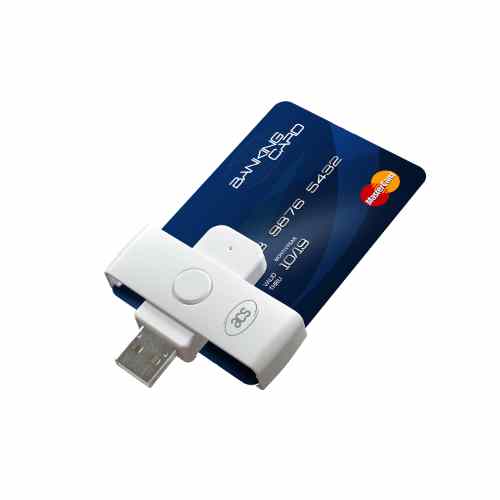

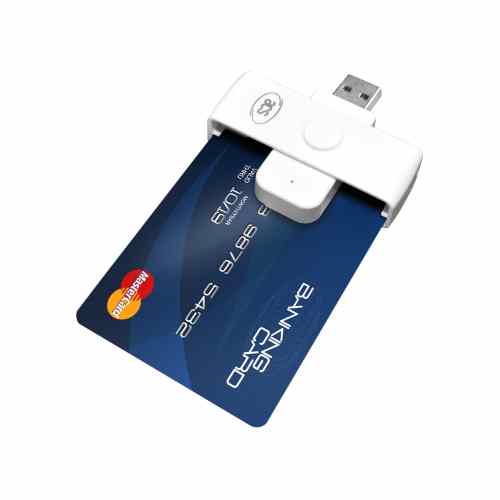

Number of Slot …………………………. 1 Full-sized Card Slot

Standard …………………………………. ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol…………………………………… T=0; T=1; Memory Card Support

Supply Current …………………………. Max. 50 mA

Smart Card Read/Write Speed……. 9.6 Kbps – 600 Kbps

Short Circuit Protection …………….. (+5) V/GND on all pins

Clock Frequency ………………………. 4.8 MHz

Card Connector Type………………… Contact

Card Insertion Cycles………………… Min. 100,000

Built-in Peripheral

LED………………………………………… Green

Application Programming Interface

PC-linked Mode………………………… PC/SC

………………………………………………. CT-API (through wrapper on top of PC/SC)

Operating Conditions

Temperature ……………………………. 0 °C – 60 °C

Humidity ………………………………….. Max. 90% (non-condensing)

MTBF ……………………………………… 500,000 hrs

Certifications/Compliance

EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE,RoHS 2, REACHTAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL

Device Driver Operating System Support

Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10

Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2,

Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016

Linux®, Mac OS®, Solaris, Android™ 3.1 and later

Feature

• USB 2.0 Full Speed Interface
• USB Type A Connector
• Plug and Play – CCID support brings utmost mobility

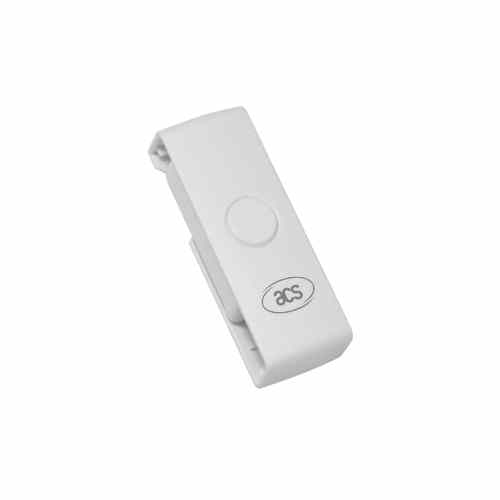

• Swivel Motion Design
• Smart Card Reader:

o Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards

o Supports CAC

o Supports SIPRNET Card

o Supports J-LIS card

o Supports microprocessor cards with T=0 and T=1 protocol

o Supports memory cards

o Supports PPS (Protocol and Parameters Selection)

o Features Short Circuit Protection

• Application Programming Interface:

o Supports PC/SC

o Supports CT-API (through wrapper on top of PC/SC)

• Supports Android™ 3.1 and later1
• Compliant with the following standards:

o EN 60950/IEC 60950

o ISO 7816

o EMV™ Level 1 (Contact)

o PC/SC

o CCID

o CE

o FCC

o WEEE

o RoHS 2

o REACH

o TAA (USA)

o J-LIS (Japan)

o VCCI (Japan)

o PBOC (China)

o Microsoft® WHQL

Application

• E-Government: The ACR39U-N1 reader streamlines citizen services by supporting government ID cards (ISO 7816) and CAC cards. Its PC/SC compliance ensures secure authentication for tax filings, voting systems.

• E-Banking and E-Payment: Enable seamless banking with this dual-interface reader (contact/contactless). It processes EMV chip cards and NFC mobile payments via USB, featuring AES-128 encryption to prevent fraud. Ideal for retail POS and peer-to-peer transfers

• E-Healthcare: Healthcare providers use the ACR39U-N1 to securely access patient records from medical ID cards. Its HIPAA -compliant design enables instant insurance verification and prescription history checks at clinics.

• Public Key Infrastructure: With PKI support, the reader authenticates digital certificates for secure email, document signing, and corporate VPN access. Hardware-level encryption protects private keys during transactions.

• Network Security: Deploy ACR39U-N1 for two-factor authentication (2FA) in network logins. Its CCID compliance allows instant integration with security systems like SIPRNet, blocking unauthorized access.

• Access Control: This reader controls physical access via smart cards or proximity tags. Rotating design and make it ideal for offices, labs, and industrial sites.

• Loyalty Program: Retailers integrate ACR39U-N1 to enhance loyalty programs. It instantly redeems points via MIFARE/FeliCa cards, issues digital coupons, and tracks member behavior—all secured by hardware encryption

ACR39U-N1 reader, small and portable with powerful functions, supports multiple systems and smart cards, which is an ideal choice to protect your security needs in electronic banking, payment and so on. Hurry up contact us~
