Characteristic

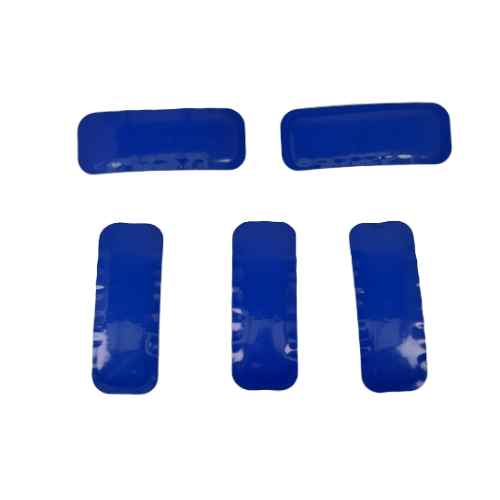

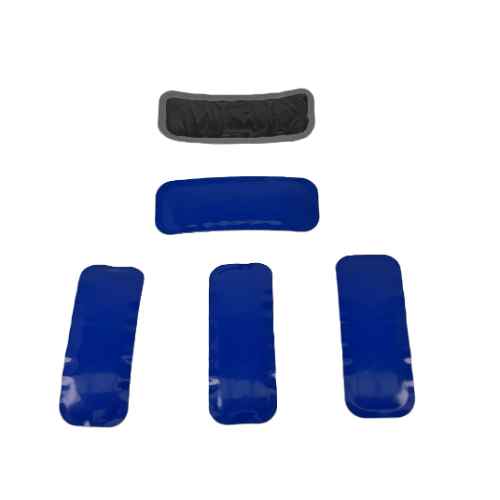

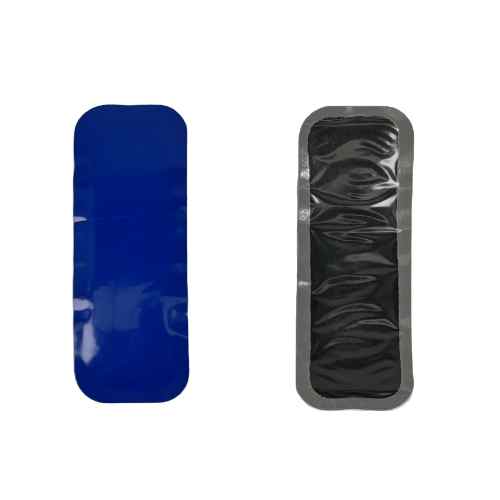

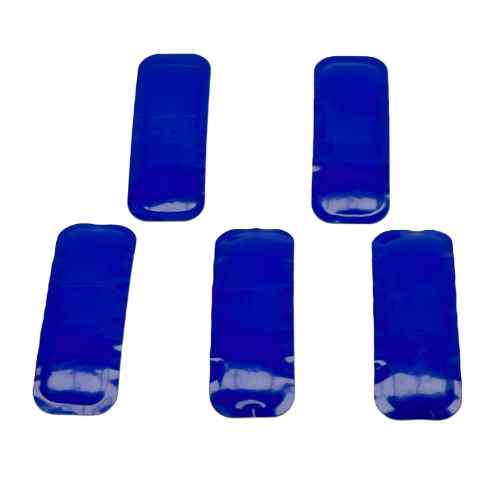

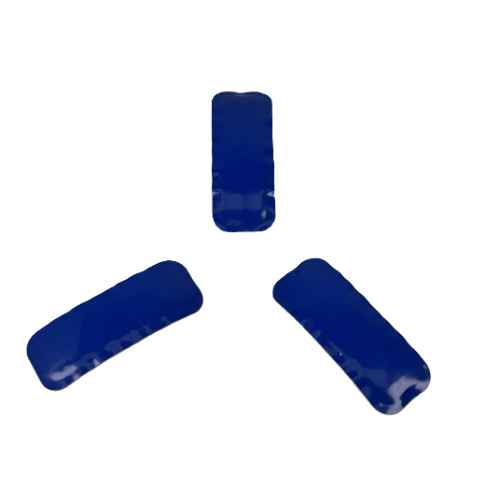

Name：RFID Tire Tag

Size: 95x35x2mm or custom

Material: Silicone

Frequency:  (US&CN) 902-928MHz （EU） 865-868MHz

Chip: Impinj R6 or other

Protocol: EPC Class1 Gen2, ISO18000-6C

Memory: EPC 128bits, 32bits, TID48bits

Write Count: 100,000 times

Functionality: Read / write

Working Temperature: -40~+85℃

Storage Temperature: -40~+230℃

Data Storage: 10 years

Read Distance：6m （Different devices have different reading ranges）

Application：

• Truck tire tracking
• Automobile factory tire tracking
• Logistic vehicle management

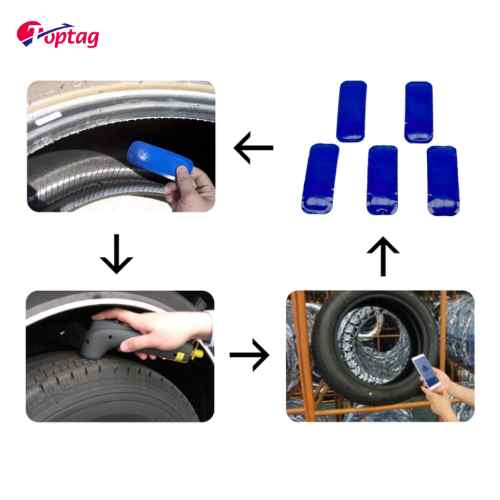

Installation: Stick to tire surface

Features:

• High-Temperature Resistance: Our RFID tire tag endures the extreme temperatures encountered during the tire curing process, ensuring reliability and durability.
• Robust Design: Built to last, this tag remains operational throughout the entire lifespan of the tire, providing consistent tracking and performance.

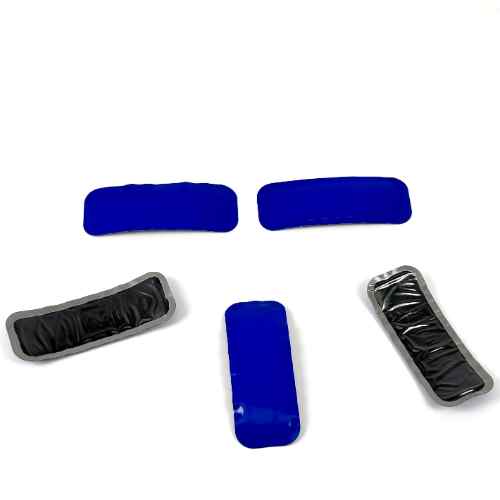

• Permanent Adhesive Attachment: The tag is securely attached to the inside wall of the tire using a specially formulated dual cure chemical or heat process, ensuring it stays in place even under harsh conditions.
• Versatile Application: Ideal for truck tires that can be recapped multiple times, our RFID tire tag enhances the efficiency of tire management and monitoring.
• Improved Asset Management: Track tire usage, rotations, and maintenance needs effortlessly.
• Enhanced Safety: Keep accurate records of tire history to ensure optimal performance and safety on the road.

Applications

• Inventory Management:
  RFID tire tags enable efficient tracking of tire stock levels within warehouses or storage facilities. This ensures optimal inventory levels are maintained, reducing the risk of stockouts and ensuring timely availability.
• Tire Tracking:
  These tags facilitate the tracking of individual tires throughout their entire lifecycle—from manufacturing to distribution and installation. Manufacturers and distributors can monitor the precise location of each tire, ensuring they reach their intended destinations on schedule.
• Maintenance Management:
  RFID tire tags provide a comprehensive maintenance history for each tire, including details such as the date of the last service, the type of service performed, and recommended service intervals. This information helps fleet managers effectively schedule maintenance tasks, reducing the likelihood of tire failures.
• Anti-Theft Measures:
  By tracking the movement of individual tires, RFID tire tags play a crucial role in preventing theft. Fleet managers can swiftly identify any missing tires and take necessary actions to recover them.

Upgrade your tire management system with our RFID Tire Tag and experience the benefits of advanced tracking technology designed for the toughest applications.
