Product Descritpion
Characteristic

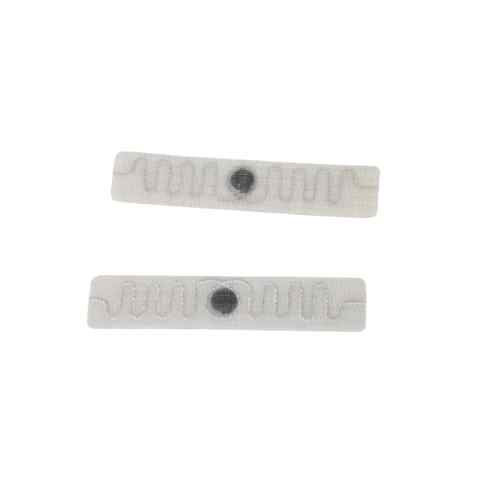

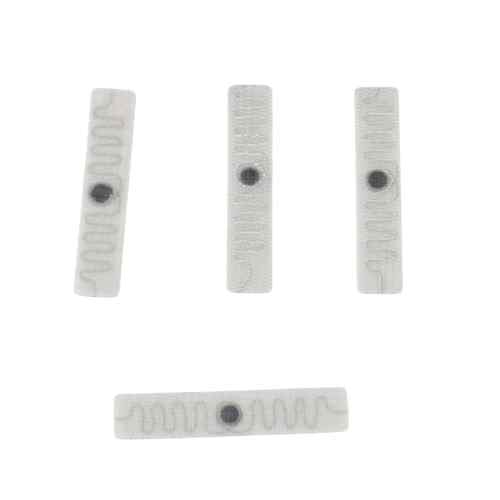

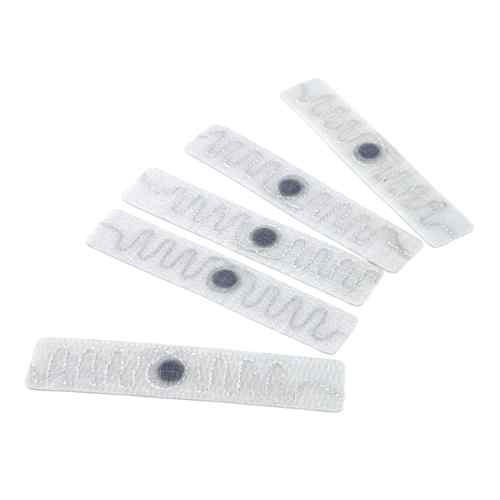

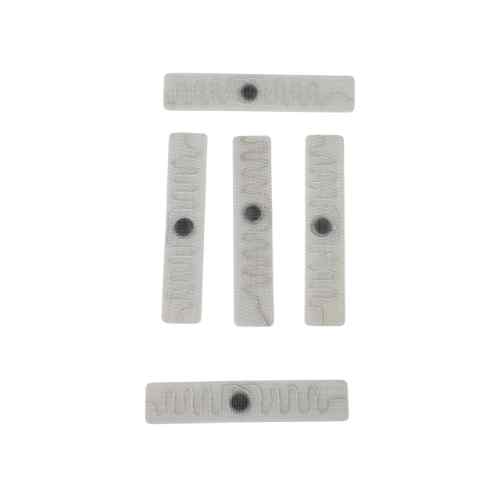

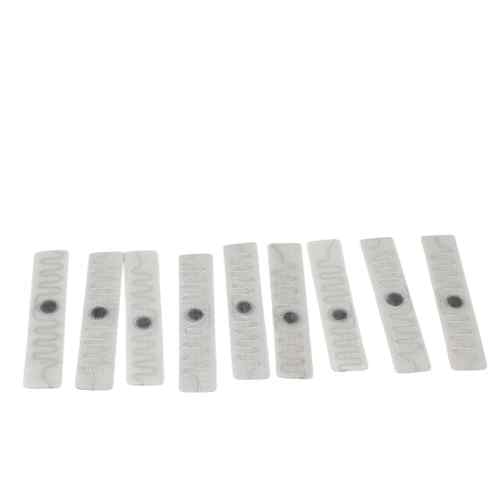

Name：RFID Woven Laundry Tag
Work frequency: UHF 860-960MHz (can customize other specific frequency)
Work Protocol: EPC ClassI Gen2; ISO18000-6C
Chip type: NXP Ucode 7 or other
Chip memory: EPC 128-bits, user area 32-bit,Access Password 32-bit,TID TID 96-bit,TID unique code, can’t modify.
Working mode: Read and write（can rewrite content to chip 100k times)
Tag polarization: Linear
Reading distance: Fixed: more than 5.5meters
Handheld: more than 2 meters
Material: Flexible Textile
Size: 70x15x1.45mm, 15x87x0.9mm, 20x60x0.9mm, 18x87x0.9mm or custom
Color: White (can customize color)
Working Temperature: -25-70 degrees
Ironing Temperature: 100degrees@ 60 minutes
125 degrees@ 10 minutes
160 degrees@30minutes
200 degrees@30seconds
High and low temperature alternating test: -40-150 degrees 7 times high and low temperature alternating test, continue 2 days testing pass
Data storage: 10 years
Certificate standard: RoHS and SGS certificate
Test standard: 100% function test
Finland Voyantic consistency test
Reliability test
Package: Multiple 1000pcs.
Remark:
* When sewing and installing, the stitches must not damage the metal wires and chip modules on the label;
* When hot ironing is installed, when the temperature reaches 215 degrees ~ 218 degrees (15 seconds ~ 20 seconds), the ironing effect is excellent.
When it is lower than 210 degrees, there is a hidden danger that the hot effect is not good;
* Different read-write facilities have different read-write performance.
Feature
- Material and Durability
Made with high-strength polyester or nylon, tear-resistant and abrasion-resistant.
Water and oil resistant, suitable for high-temperature washing, drying, and disinfection processes.
Resistant to chemical corrosion, able to withstand industrial chemicals such as bleach and detergents.
- Intelligent Identification Technology
Built-in passive RFID chip, supporting contactless reading and writing.
Stores unique identifiers and additional data (such as owner information, washing count, maintenance records).
- Efficient Operation
Batch scanning: No visual alignment required, fast reading from a distance (hundreds of tags can be identified at a time).
Reduces manual intervention, lowers sorting error rates, and improves inventory management efficiency.
- Flexible Installation and Environmentally Friendly
Can be directly sewn, heat-pressed, or hung on the fabric surface without affecting the user experience.
Battery-free design, ultra-long lifespan (≥10 years), meeting sustainable development requirements.
- Application
- Industrial Laundry and Rental Services:
Manage and lifecycle management of large-scale textiles such as hospital bed sheets, surgical gowns, and catering linens. Automation of asset recovery and billing for rental companies (e.g., work clothes, towels).
- Hotel and Accommodation Industry:
Monitoring the cleaning frequency of guest room linens (sheets, towels) to prevent loss and optimize inventory. Ensuring hygiene compliance of guest supplies to enhance customer trust.
- Medical and Laboratory Environments:
Traceability of sterilization processes for medical staff uniforms and laboratory protective clothing to avoid cross-contamination. Targeted allocation and disposal management of high-value medical device fabrics.
- Logistics and Supply Chain:
Management of textile transportation to reduce misdeliveries and omissions. Automated warehousing and inventory management to accelerate inbound and outbound processes.
What Can RFID Laundry Tag do for you?
- Reduce Manual Laundry Sorting.
- Provide Accurate Wash Count Records.
- Provide Visibility Into Inventory Quickly And Easily.
- Reduce Loss and Theft.
- Provide Meaningful Customer Information.
- Enable Accurate Check-In and Check-Out System.
Efficient & Durable, Smart manage—Simplify textile management with our RFID woven laundry tags!
