Product Descritpion
Introduction

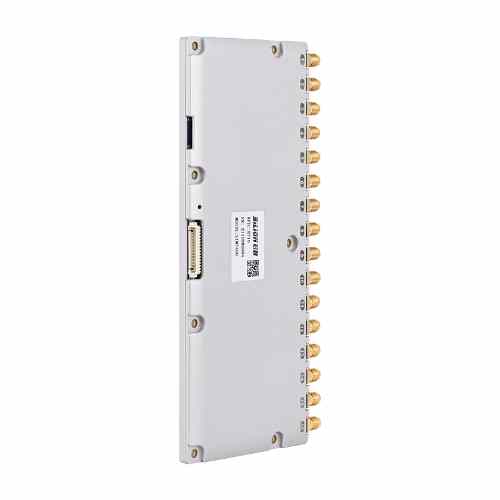

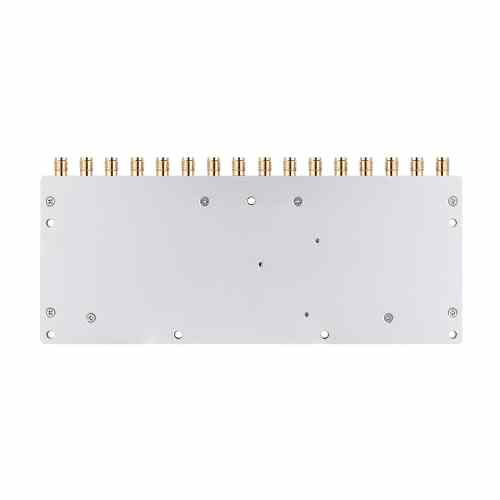

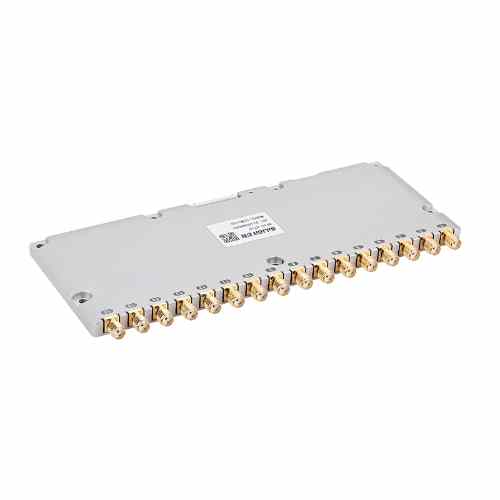

The high-performance UHF 16-port RFID module SIMX400, leverages IMPINJ’s E710/E510/E310chips to deliver adjustable output power from 5dBm to 33dBm (configurable up to 30dBm). Capable of reading tags beyond 12 meters (dependent on antenna gain and tag size), it integrates an advanced multi-tag recognition algorithm for rapid inventorying of both stationary and moving objects at speeds exceeding hundreds of tags per second. With superior anti-interference design and carrier cancellation technology, SIMX400 ensures stable operation in challenging environments such as logistics warehouses, manufacturing assembly lines, and automated patrol systems. Its versatile configuration modes cater to diverse applications including retail inventory management, medical equipment tracking, and smart cabinet integration, making it a top-tier choice for industrial-grade RFID deployment.
Characteristic
| Physical | |
| Size | 181.5mm x83.3mm x 8mm |
| Weight | 248g |
| Connector material | Brass gold plated |
| PCB | FR4 gold plated |
| Shield material | Aluminum Alloy |
| RF Parameters | |
| Chip | Impinj E710 |
| Air Protocol | EPC global UHF Class 1 Gen 2 (ISO 18000-6C) |
| Frequency | NA: 902~928MHz FCC (NA, SA) |
| EU: 865~868MHz (ETSI) | |
| CN: 920~925MHz (CMIIT) | |
| FULL:860~960MHz（OPEN） | |
| Sensitivity | SIM7400: -84dBm@10%BER
SIM5400: -79dbm@10%BER SIM3400: -72dbm@10%BER |
| ANTENNA | 16 50Ω SMA connectors, 50dB isolation between each port |
| RF Power | 5dBm~30dBm or 33dBm (±1dB) |
| Working Mode | Fixed / Hop frequency |
| RSSI | Support |
| Temp detect | Support |
| Antenna detect | Support |
Pin foot Definition
| Pin | Def | Pin | Def |
| 1 | GND | 9 | RXD (DATA INPUT,TTL ) |
| 2 | GND | 10 | TXD (DATA OUTPUT,TTL ) |
| 3 | VCC +5V ±0.25V | 11 | NC |
| 4 | VCC +5V ±0.25V | 12 | NC |
| 5 | GPIO1 (OUT1) | 13 | NC |
| 6 | GPIO2 (OUT2) | 14 | SHUTDOWN( Low level enable,
High level power0ff, High level should be greater than VCC-0.3V) |
| 7 | GPIO3 (IN1) | ||
| 8 | GPIO3 (IN2) | 15 | NRST (Reset, low-power calming position) |
| RF Features | |
| Inventory Peak Speed | SIM 7400: >1000 tags/s
SIM5400: >600 tags/s SIM3400: >350 tags/s |
| Read range | >15M（8dBi aluminum antenna） |
| Tag cache | 1000pcs, @96 bit EPC |
| Communication interface | |
| Communication | UART serial port |
| baud rate 9600~921600bps
@default 115200bps |
|
| GPIO | 2GPI, 2GPO （3.3V TTL） |
| TTL interface | 15pin, TTL Uart3.3V（TTL） |
| Power supply | |
| Voltage | DC 5V±5% |
| Consumption | 15.5W（peak）, 3.1A@5V
1.05W（standby）,0.21A@5V |
| Environment parameters | |
| Working Temp. | -25°C ~ +65°C |
| Storage Temp. | -40°C ~+85°C |
| Humidity | 5~95% non condensing (+25°C) |
| Cooler | external cooler board |
| API support | |
| Free API | C, C#/.NET, Java |
| Purchase Info.(Eg: SIM7400) | |||
| PART NUMBER | RF power | Frequency | Certifications |
| 10.74000000.02 | 33/30 dBm | 860~960 MHz | Regular |
| 12.74000000.02 | 33 dBm | 920~925 MHz | SRRC |
| 10.74000100.02 | 30 dBm | 902~928 MHz | FCC |
| 10.74000300.02 | 30 dBm | 865~868 MHz | CE |
| 10.74000D00.02 | 30 dBm | 920~926 MHz | RCM |
Feature
- ARMv7-M architecture 32bit Cortex-M4 CPU, integrated FPU, MPU, DSP, the highest work main frequency is 200MHz, 512KByte Flash
- Support UHF EPC Class1 Gen2/ISO 18000-6C
- Provide Windows，Linux and Android SDK, and API based on C, C#/.NET, JAVA
- Support inventory of temperature tags, the output parameters include the RSSI and phase value of the tag return signal
- 16-port antenna polling output, the shortest polling time is less than 25mS
- Domestic version with max power output of 33dBm
- Certified version with max power output of 30dBm
- SIMX400 has excellent anti-collision algorithm and high sensitivity. The fastest speed of inventory tags is greater than 1000tag/s
- Multiple inventory modes suitable for most applications
- The UART serial communication baud rate can be set from 9600bp to 921600bps
- 2 input 2 output GPIO
- Onboard temperature real-time monitoring, combined with aluminum shell heat dissipation, ensures that the module can work stably for long time.
- Size: 181.5mm*80.3mm*8mm
- Antenna connection status monitoring, real-time protection of the receiver.
- Obtained SRRC, CE, FCC and other certifications
- Comply with ROHS requirements
Application
- Filing Cabinets and Tool Cabinets Management:
In enterprises or institutions, strict permission control and records are often required for accessing important documents and tools. By integrating the RFID SIM X400 reader module into filing cabinets and tool cabinets, automated asset identification and management can be achieved. Employees only need to swipe their cards or enter passwords to open the cabinet doors, and the system will automatically record information such as the time, personnel, and items taken for each opening, thereby improving security and reducing human errors. Additionally, this module supports batch reading functions, making inventory work more efficient and fast, especially suitable for scenarios with frequent borrowing and returning of tool management and confidential document storage.
- Application of Intelligent Shelves:
The intelligent shelf is an important part of the intelligent transformation of the modern retail industry. Based on collected data, the system can also analyze consumer purchasing behaviors, push personalized promotional information for them, optimize store layouts, and then increase sales volume and service quality. This technology is not only suitable for retail places such as supermarkets and convenience stores but also shows great potential in fields like pharmaceutical warehousing.
- Operation of Vending Machines:
With the development of the unmanned retail concept, more and more vending machines have begun to adopt advanced technological means to improve user experience. For example, vending machines equipped with built-in RFID SIM X400 reader modules can complete transaction processes by scanning QR codes or other payment vouchers on consumers’ mobile phones, which greatly improves checkout speed without manual intervention throughout the whole process.
SIMX400 UHF RFID reader module Featuring robust interference resistance and multiple configuration modes, ideal for cabinets, warehouses, logistics etc.
If needed, we can also provide the Complete Open Source Development Board and antenna to match the module.
Contact us to know more details.
