Product Descritpion
Introduction:

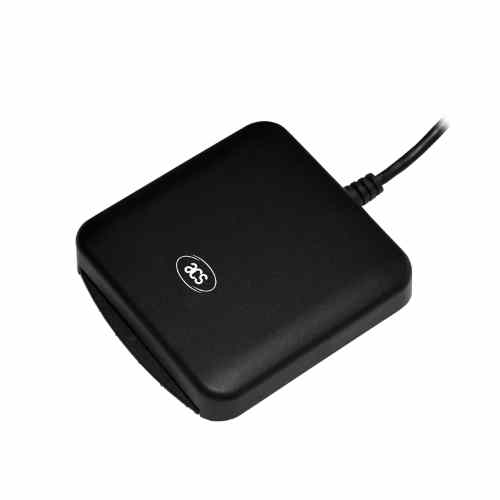

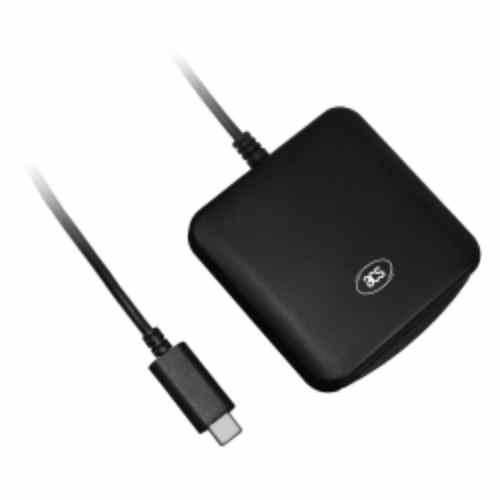

The ACR39U-U1 Smart Card Reader is a compact device integrating advanced technology and modern design, featuring a USB Full Speed interface and up to 600 Kbps read/write speed. With high durability (supporting 200,000 card insertion cycles) and certifications like EMV Level 1 and PBOC, it meets rigorous security demands for e-banking and payment applications. Fully compliant with PC/SC and CCID standards, it supports Windows, Linux, macOS, and Android 3.1+, making it an ideal peripheral for smart card solutions
Characteristic
| Physical Characteristics | |
| Dimensions (mm) | 72.2 mm (L) x 69.0 mm (W) x 14.5 mm (H) |
| Weight (g) | 65.0 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | USB Type-A |
| Power Source | USB port |
| Speed | USB 2.0 Full Speed (12 Mbps) Compatible with USB 3.0 |
| Cable Length | 1.5 m (Non-Detachable) |
| Contact Smart Card Interface | |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V) |
| Protocol | T=0; T=1; Memory Card Support |
| Others | Mykad Card, CAC, PIV, J-LIS, SIPRNET Smart Cards |
| Certifications/Compliance | |
| Certifications/Compliance | Standards
· USB CCID, PC/SC, Microsoft® WHQL, EMVTM Level 1 (Contact), PBOC Level 1 (Contact), J-LIS, TAA Regulatory/ Environmental · CE, IEC/EN 62368, FCC, VCCI, UKCA, RoHS, REACH, KCC, UL, BIS |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows®, Linux®, macOS, Solaris™, Android™ |
Feature
- USB Full Speed Interface
- Plug and Play – CCID support brings utmost mobility
- Smart Card Reader:
o Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
o Supports CAC
o Supports SIPRNET Card
o Supports J-LIS Card
o Supports microprocessor cards with T=0 and T=1 protocol
o Supports memory cards
o Supports PPS (Protocol and Parameters Selection)
o Features Short Circuit Protection
- Application Programming Interface:
o Supports PC/SC
o Supports CT-API (through wrapper on top of PC/SC)
- Supports Android™ 3.1 and later1
- Compliant with the following standards:
o EN 60950/IEC 60950
o ISO 7816
o USB Full Speed
o EMV™ Level 1 (Contact)
o PC/SC
o CCID
o CE
o FCC
o WEEE
o RoHS 2
o REACH
o FIPS 201 (USA)
o TAA (USA)
o J-LIS (Japan)
o VCCI (Japan)
o PBOC (China)
o Microsoft® WHQL
Application
- E-Government
- E-Banking and e-Payment
- E-Healthcare
- Public Key Infrastructure
- Network Security
- Access Control
- Loyalty Program
The ACR39U-U1 Smart Card Reader integrates advanced technology and modern design. Contact us to know more details.
