Information

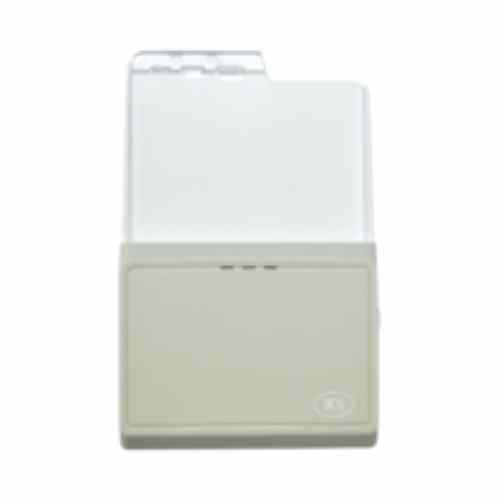

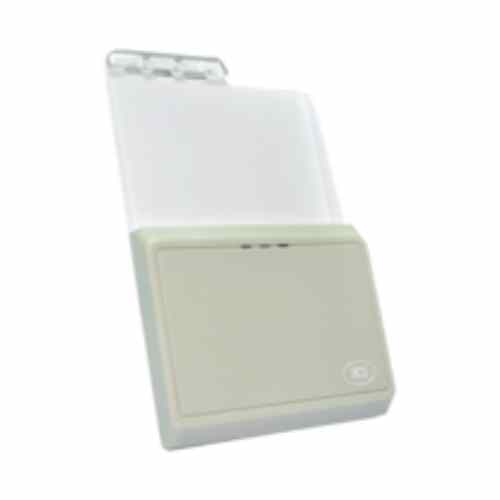

The ACR3901U-S1 ACS Secure Bluetooth® Contact Card Reader combines the latest technology in

the world of smart card readers with Bluetooth® connectivity. This compact and wireless smart card reader brings together sophisticated technology with fresh design to meet different requirements in various smart card based applications using Bluetooth-enabled devices such as smart phones and tablets.

Characteristic

Physical Characteristics

Dimensions ……………………………… 94 mm (L) × 60 mm (W) × 12 mm (H)

Weight…………………………………….. 30.8 g (59.7 g with cable ± 5 g tolerance)

Colors……………………………………… Gray, White

Bluetooth Interface

Protocol…………………………………… Bluetooth (Bluetooth Low Energy/Bluetooth 4.0)

Power Source…………………………… Rechargeable Lithium-ion Battery (Charging through USB)

Speed……………………………………… 1 Mbps

USB Host Interface

Protocol…………………………………… USB CCID

Connector Type………………………… Micro-USB

Power Source…………………………… From USB port

Speed……………………………………… USB Full Speed (12 Mbps)

Supply Voltage…………………………. 5 V

Cable Length……………………………. 1 m, Detachable

Contact Smart Card Interface

Number of Slot …………………………. 1 Full-sized Card Slot

Standard …………………………………. ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol…………………………………… T=0; T=1; Memory Card Support

Supply Current …………………………. Max. 50 MA

Smart Card Read/Write Speed……. 9.6 Kbps – 600 Kbps

Short Circuit Protection …………….. (+5) V/GND on all pins

Clock Frequency ………………………. 4.80 MHz

Card Connector Type………………… ICC Slot 0: Contact

Card Insertion Cycles………………… Min. 100,000

Built-in Peripheral

LED………………………………………… 3 single-color: Red, Blue, and Green

Other Features

Encryption ……………………………….. In-device AES-128 Encryption Algorithm

Firmware Upgrade ……………………. Supported (Upgradeable through USB interface)

Application Programming Interface

PC-linked Mode………………………… PC/SC

………………………………………………. CT-API (Through wrapper on top of PC/SC)

Operating Conditions

Temperature ……………………………. 0 °C – 60 °C⁴

Humidity ………………………………….. Max. 85% (Non-Condensing)

MTBF ……………………………………… 400,000 hrs

Certifications/Compliance

EN 60950/IEC 60950, ISO 7816, USB Full Speed, Bluetooth, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, RoHS, REACH, VCCI (Japan), MIC (Japan), Microsoft® WHQL

Device Driver Operating System Support

Windows® 7, Windows® 8, Windows® 8.1, Windows® 10

Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012,

Windows® Server 2012 R2, Windows® Server 2016

Linux®, Mac OS®, Android^TM5, iOS⁶

Feature

• USB 2.0 Full Speed Interface
• Bluetooth Interface
• Plug and Play – CCID support brings utmost mobility
• Smart Card Reader:

o Contact Interface:

• Supports ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V) cards
• Supports microprocessor cards with T=0 or T=1 protocol
• Supports memory cards
• Supports PPS (Protocol and Parameters Selection)
• Features Short Circuit Protection
• Supports AES-128 encryption algorithm
• Application Programming Interface:

o Supports PC/SC

o Supports CT-API (Through wrapper on top of PC/SC)

• Built-in Peripherals:

o LEDs

• USB Firmware Upgradeability¹
• Supports Android™ 4.3 and later²
• Supports iOS 8.0 and later³
• Compliant with the following standards:

o EN 60950/IEC 60950

o ISO 7816

o Bluetooth®

o EMV™ Level 1 (Contact)

o PC/SC

o CCID

o CE

o FCC

o RoHS

o REACH

o VCCI (Japan)

o MIC (Japan)

o Microsoft® WHQL

Application

• E-Government
• E-Healthcare
• E-Purse and Loyalty
• Mobile Banking and Payment
• Network Security
• Access Control
• Public Key Infrastructure

The ACR3901U-S1 reader integrates advanced smart card technology with convenient Bluetooth connectivity, supporting multiple systems and card types, featuring high-speed reading and writing, secure encryption, portability and durability, making it an ideal choice for your smart card solution.
