Product Descritpion
Introduction:

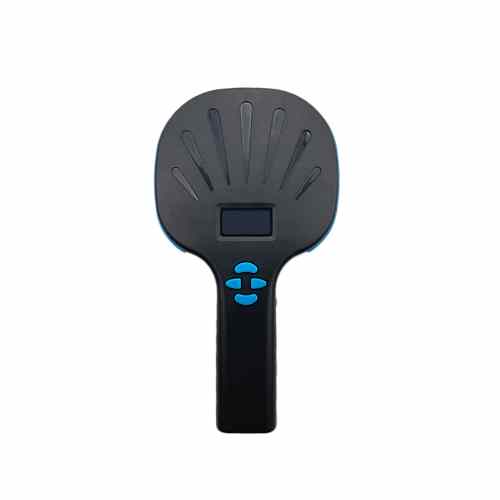

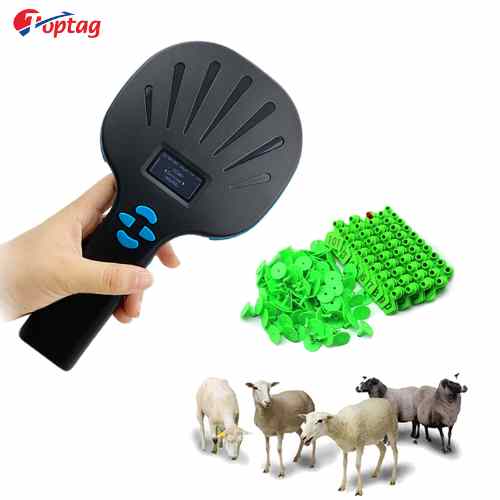

The W91 Animal Tag Reader is a versatile RFIDdevice supporting EMID, FDX-B (ISO1784/85) compliant microchips alongside conventional barcode/QR code scanning. Its high-brightness OLED display ensures clear visibility in indoor/outdoor environments, while massive internal storage holds up to 6,000 tags. Data transfers seamlessly via USB, wireless protocols, or Bluetooth to computers. With stable performance and one-handed operation simplicity, this reader excels in small animal management, product traceability systems, warehouse inventory control, and industrial material manage – delivering efficiency from farm to factory.
Characteristic
| project | parameter |
| Model | W91 |
| working frequency | 134.2Khz |
| Label format | EMID、FDX-B(ISO11784/85) |
| Reading distance | 2 to12mm glass tube label >15cm
30mm animal ear tags >25cm(related to label performance). |
| standard | ISO11784/85 |
| Reading time | ＜100ms |
| Scan mode | CMOS |
| Support code system | 2D：PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000,050, 080, 100,140),Aztec, Maxicode等1D：Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar等 |
| Signal indication | 128 x 64 high-brightness OLED screen, buzzer |

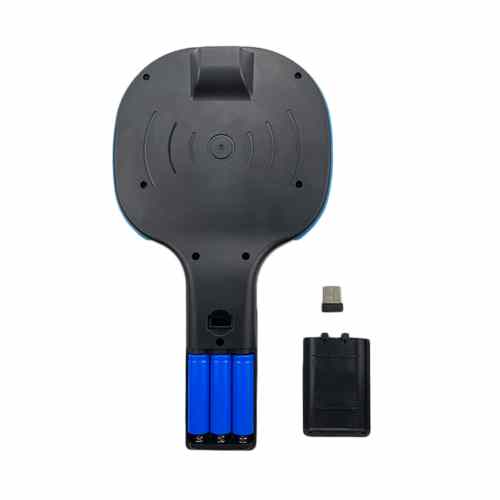

| power supply | 3.7V (rechargeable lithium battery). |
| storage capacity | 6000 messages |
| Connection method | USB2.0, Wireless HID (optional), Bluetooth (optional). |
| language | English (can be customized according to customer requirements) |
| Operating temperature | -10℃~50℃ |
| Storage temperature | -30℃~70℃ |
| Package Size | 267cm×148cm×38cm |
| weight | 500g |
-
Feature
- Multi-Protocol Compatibility: Supports 134.2kHz frequency and ISO11784/5 FDX-B, EMID standards for versatile livestock/pet microchip scanning.
- High-Efficiency Performance: Reads tags in <100ms with distances up to 25cm (ear tags) and 15mm (glass tubes), ideal for animal management.
- Rugged Design: Operates in -10°C~50°C environments with 6000-tag offline storage, ensuring reliability in harsh conditions.

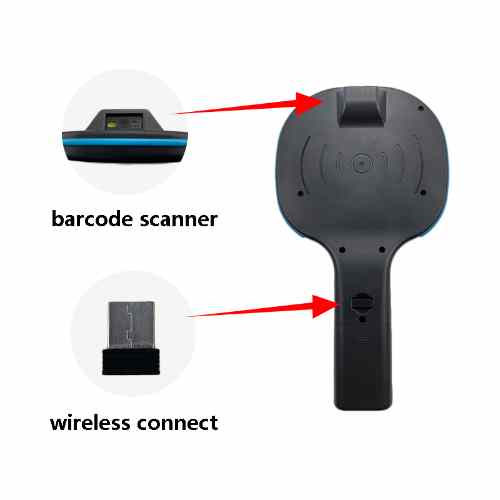

- Smart Connectivity: Transfers data via Type-C, 2.4G wireless, or Bluetooth for seamless integration with PCs/mobile devices.

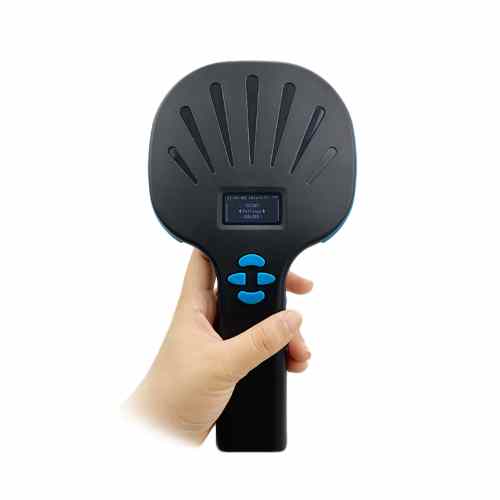

- Intuitive Interface: 128*64 high-brightness OLED display + buzzer alerts enable clear visibility and error-free operation.
-
Application

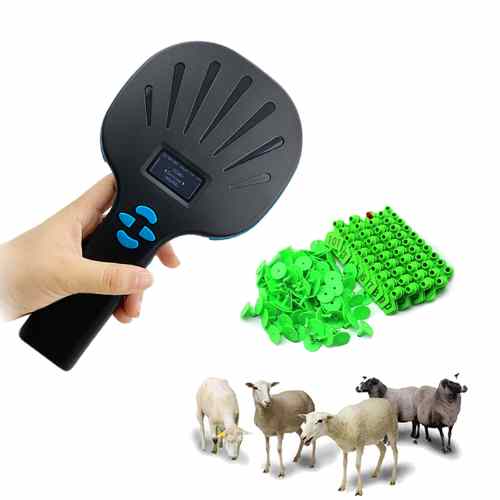

- Livestock Management Excellence: Streamline cattle identification, breeding cycle tracking, and preventive healthcare monitoring with non-contact data collection.

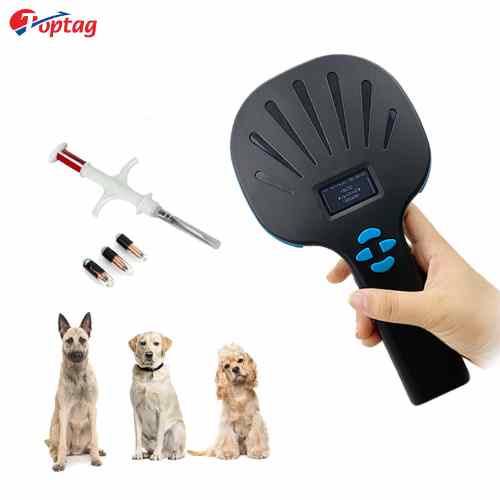

- Pet Chip Scanning System: Instantly read microchips for pet registration, loss prevention, and medical history management at veterinary clinics or animal shelters.
- Wildlife & Laboratory Research: Ethically monitor wildlife populations or log experimental animal data without physical interference, supporting conservation efforts.
- Small Animal Traceability: Ensure full lifecycle oversight of lab mice, birds, and exotic species through individual ID mapping and secure database integration.
The W91 reader is an indispensable assistant in your animal identification and management work! And we also have many other animal card readers for you to choose.
Contact us for more information!
