Product Descritpion
Introduction:

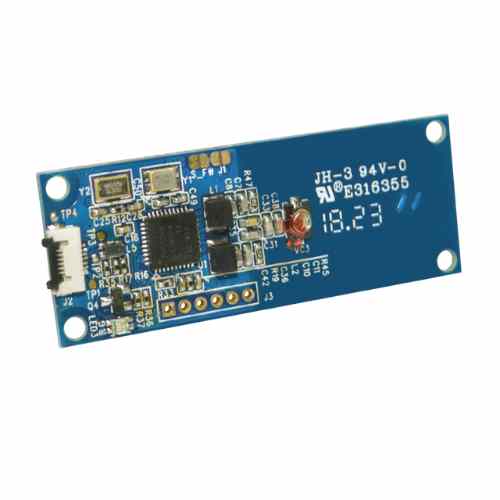

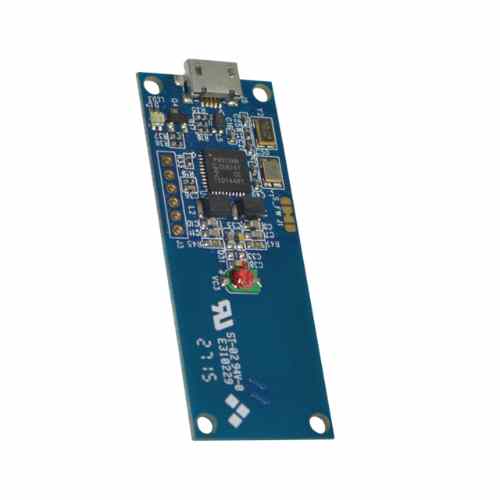

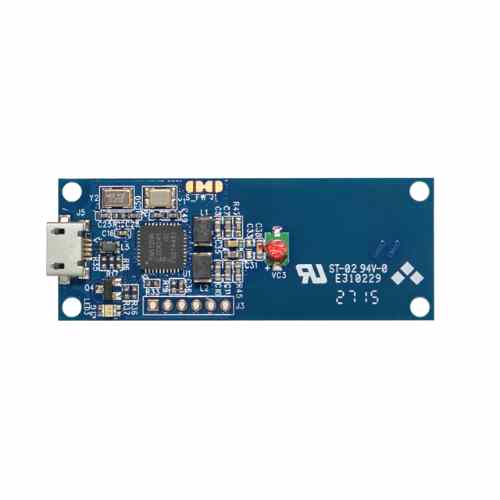

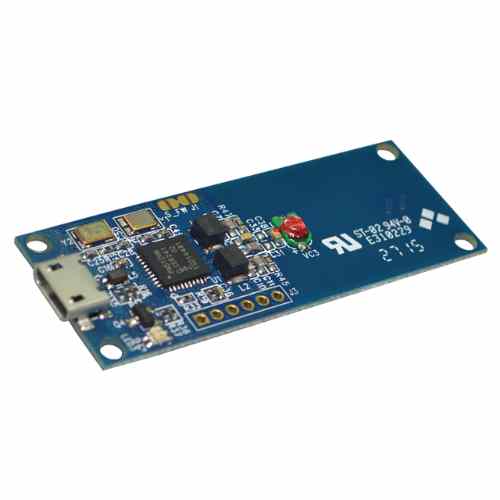

The ACM1252U-Z2 Ultra-Compact NFC Reader Module leverages 13.56MHz contactless technology for seamless integration into embedded systems, measuring just 52.0×20.0×6.0mm. It supports ISO 14443 Type A/B cards, MIFARE®, FeliCa, and ISO 18092 NFC tags with 424Kbps data speed and 30mm operating range, featuring anti-collision algorithms to ensure single-tag access in multi-card scenarios. Certified by PC/SC , this module includes a detachable Micro-USB port for flexible deployment in space-constrained devices like kiosks, industrial controllers, and IoT gateways. Its firmware upgrade capability minimizes long-term maintenance efforts.
Characteristic
| Physical Characteristics | |
| Dimensions (mm) | 52.0 mm (L) x 20.0 mm (W) x 6.0 mm (H) |
| Weight (g) | 3.65 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | Micro USB |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 1.0 m, Detachable (Upon Request) |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa |
| Protocol | ISO14443-4 Compliant Cards, T=CL MIFARE® Classic Card Protocol, T=CL ISO 18092, NFC Tags FeliCa |

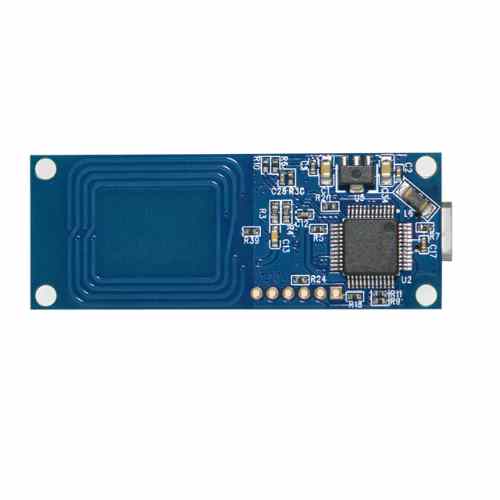

| Antenna | 20 mm x 22 mm |
| Built-in Peripherals | |
| LED | 1 bi-color: Red and Green |
| Other Features | |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | ISO 14443 ISO 18092 USB Full Speed PC/SC CCID CE FCC RoHS REACH Microsoft® WHQL |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® Linux® MAC OS® Solaris Android™ |
Feature
- USB 2.0 Full Speed Interface
- CCID Compliance
- Contactless Card Support:
- Read/write speed of up to 424 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 30 mm (depending on tag type)
- Supports ISO 14443 Part 4 Type A and B cards, MIFARE®, FeliCa and all four types of NFC (ISO 18092 tags)
- Built-in anti-collision feature (only one tag is accessed at any time)
- Application Programming Interface
- Supports PC/SC
- USB Firmware Upgradability
Application
- E-Government Solutions: Public service platforms, citizen portals, inter-departmental data collaboration.
- Banking & Secure Payment: Smart transaction terminals, cross-border payment security, AES-128 encryption.
- E-Healthcare Services: Patient ID verification, medical billing systems, EHR integration.
- Network Security: Multi-factor authentication, end-to-end encryption, fraud detection.
- Smart Access Control: Biometric recognition, permission hierarchy management.
- E-Purse & Loyalty: Point redemption, prepaid card management, user analytics.
- Intelligent Transportation: Public transit payments, vehicle identification, real-time traffic data.
